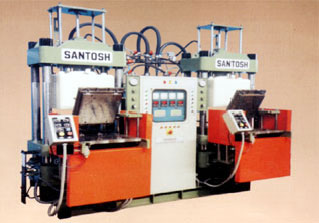

VACUUM MOULDING PRESSES [SVMP]

SPECIAL ADVANTAGES

Shorter curing time - appx. 60% - resulting in more production.
No ill-filled cavities.
Practically "Zero" air entrapment rejections.
Power saving due to shorter cycle and inert atmosphere.
Increased Mould life due to non-oxidation of curing agents hence less labour of mould cleaning.
Total automation, easy & faster loading/unloading, less fatigue to operator, saves time, power and manual energy.

Latest Siemen's PLC Controls.

Easy Die Separation
by Ejector.

MAIN FEATURES

Integrated Vacuum-Chamber device to give fast Vacuum before degassing and mould closing to facilitate perfect die filling.
Main Ram used for final compression force, with double acting auxiliary cylinders, fast closing, slow degassing in micro-speed.
PERFECT temperature indication and control with band setting solid state Digital controllers via cartridge heaters.
PRE-HEAT timers for 7 days programming to save pre-heat time.
Variable speed Hydraulic Pushers for mould IN/OUT
Front mounted Hydraulic Ejector for mould seperation and tilting to desired angle, for ease of material loading and product unloading.
Each press individually PLC (SIEMENS) controlled with double line display of complete sequence of events.
Speed, Degassing sequence, curing time are programmable as per individual production requirements.

TECHNICAL SPECIFICATION
MODEL NO.	S-VMP-100	S-VMP-150	S-VMP-200	S-VMP-250	S-VMP-350
Clamping Force (Tons)	100 T	150 T	200 T	250 T	350 T
Platen Size	350 x 350	450 x 450	550 x 550	650 x 650	700 to 900
Max. daylight	300 mm	300 mm	300 mm	300 mm	350 mm
Stroke	250 mm	250 mm	250 mm	250 mm	300 mm
Heating Load Kw	4.8 KW	7.5KW	14 KW	18 KW	18 KW
Power pack	5 HP	7.5 HP	7.5 HP	10 HP	12-15 HP
Max. angle of Tilting in Degree	80	80	80	80	80
Main Ram Dia (mm)	250	300	350	400	450
