DISPERSION KNEADERS
|
| |
| SANTOSH
Offers complete series of KNEADERS from Lab.
To 100 Litre Production model in Rear charge and
front discharge type with hard faced Rotors and
chambers for long life. |
| |
| MIX

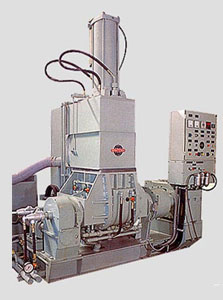

MASTER A DISPERSION KNEADER SUPERIOR BY DESIGN
|
| |
|
MIX
MASTER a dispersion kneader superior by design,
engineering and construction represents an advanced
class of kneaders in India.
|
|
| |
|
In
last 15 years, Santosh
MIX MASTER has proved a big boon to several medium
and large rubber industries. Incorporating world class
technological features, MIX MASTER symbolizes techno-economic
success among Indian Kneaders, by giving higher outputs,
through perfect process control.
|
| |
|
With
simple operation and easy cleaning, MIX MASTER gives
its best even when the operators skill and experience
are limited.
|
| |
| COMBINATION
WITH SHEETING MILL |
| |
|
Several
MIX MASTER kneaders have been supplied with feeding
bucket conveyor, linked to an appropriate
Santosh Sheeting Mill through a skip conveyor.
|
| |
|
|
| |
|
MIX
MASTER kneader linked to a
Santosh
sheeting mill through a skip conveyor.
|
| |

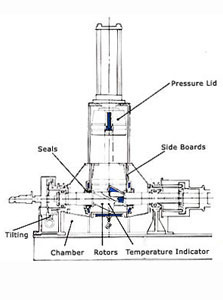

| MATERIALS
OF CONSTRUCTION |
| |
- ROTORS
:
One piece steel casting for intensive cooling, duly
finished and hard chrome plated or armoured with
hard facing.
- CHAMBER
:
One piece steel casting for intensive cooling duly
finished and hard chrome plated or armoured with
hard facing.
- SIDE
BOARD :
Steel casting duly finish machined and hard Chrome
Plated.
- PRESSURE
LID : Steel
Casting Duly finish machined and hard Chrome Plated.
- SEALS
:
Leak Free Gland Or Mechanical Seals.
- TITLTING
:
By worm gear and brake motor.
- TEMP.
INDICATION : Projecting
type thermocouple.
|
| |
| TECHNICAL
SPECIFICATIONS |
| |
| MODEL
NO. |
MAIN
MOTOR |
ROTOR
SPEEDS |
CHAMBER
VOLUME IN LITRES |
EFFECTIVE
WORKING CAPACITY IN LITRES |
TILTING
ANGLE |
TUB
TILTING MOTOR |
AIR
COMPRESSOR REQUIRED |
| SMM-LAB |
5HP |
30/24
RPM
|
3
Litres |
1
Litres |
140o |
Manual |
1HP |
| SMM-10/20 |
20HP |
20
Litres |
10
Litres |
140o |
1HP |
1HP |
| SMM-20/40 |
40HP |
40
Litres |
20
Litres |
140o |
2HP |
2HP |
| SMM-35/75 |
75HP |
75
Litres |
35
Litres |
140o |
3HP |
3HP |
| SMM-55/100 |
100HP |
125
Litres |
55
Litres |
140o |
3HP |
5HP |
| SMM-75/125 |
125HP |
170
Litres |
75
Litres |
140o |
3HP |
5HP |
| SMM-100/150 |
150HP |
245
Litres |
100
Litres |
140o |
5HP |
5HP |
|
| |
|
|
| |
|
|
| |
|
KNEADERS
Rear Feed Front Discharge (MATERIAL
FEED FROM REAR & MATERIAL DISCHARGE FROM
FRONT)
|
|
| |
