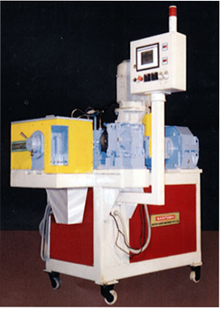

BLANKEX
- 50
PREFORMER & STRAINER SYSTEM
|
|
|
|
| "SANTOSH"
a
leading name of extrusion system in India now introduces

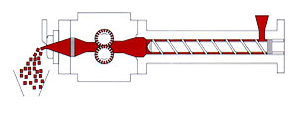

India's first Reformer / Strainer system comprising
of a cold feed extruder / Gear Pump system for processing
varieties of rubber compounds used for : |
- Preforming
& blank cutting
- Extrusion
of profiles
- Straining
of rubber compounds
- Feeding
Calender
|
| The
above system has got a benefit of cold feed extrusion
with lower power consumption with unique gear pump for
perfect metering and discharging of rubber compound
at constant rate with built-in combination of die head
assembly and integrated cutting unit with intelligent
touch screen control system. |
|
| Special
Features and Advantages: |
- No
warming mill required hence power, labour and investment
saving.
- Wastage
due to higher weight & rejections due to lower
weight in compression moulding is avoided.
- It
is a continuous process instead f batch to batch
performing or straining hence once the parameters
are set it is a continuous process.
- Improved
accuracy in weight and size.
- No
large residue as compound left would be very small
in quantity which can be cleaned easily.
- Less
space occupied as the machine is compact in design.
- As
the extruder is cold feed type, defects due to feed
temperature variation and warming time will not
be there.
- Facility
for memory to keep many recipe's provided in the
control system.
- The
control system is user friendly with touch screen
with automatic blank weight control.
- Automatic
Temp. Control for various zone with TCU's
- Easy
maintenance, compact design, no Hydraulics involved
hence no costly spares.
|
| SPECIFICATIONS
: |
| Model
No. |
:
Blankex - 50 |
| Scroll
Size |
:
50 mm |
| Estimated
output |
: 80 Kgs/hour at top speed |
| Cutting
Speed |
:
Max. 630 cuts per minute |
| Estimated
accuracy |
:
1~2% of the blank weight |
| Power
requirement |
:
16 Kw (Main Machine) |
| |
10.5 Kw (Temp. control unit) |
|
|
|
| |
